Foundation Stabilization in Santa Clara, CA

Wednesday, February 19th, 2025 by Mike Gray

Challenge

Project Overview:
A homeowner in Santa Clara, CA, noticed significant foundation issues that were affecting the functionality and safety of their home. Their doors would not fully close due to foundation shifts, and they were also experiencing cracks in their walls, door frames, and window frames. Concerned about the structural integrity of their home, they turned to Foundation Repair of CA for a permanent solution to stabilize their foundation and prevent further damage.

Diagnosis and Challenges:
Upon inspection, the Foundation Repair of CA team identified that the home was experiencing differential settlement, causing uneven floors, misaligned doors and windows, and visible cracking. The underlying issue was soil movement beneath the foundation, leading to structural shifts over time. To effectively address the homeowner’s concerns, a comprehensive foundation stabilization and repair plan was necessary.

Solution

Solution Implemented:
To restore the home's structural integrity, Foundation Repair of CA executed the following repair solutions:

Concrete Removal & Replacement (R & R) Per Pier Location:

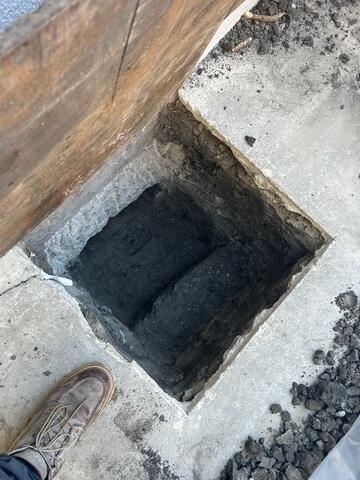

Removed and replaced concrete sections (approximately 3' x 3' per pier area) to facilitate pier installation.
Ensured proper reintegration of concrete surfaces while noting potential differences in finish and color.

Flat Land Push Piers (Galvanized, Low-Profile Brackets):

Excavated and installed push piers at identified locations to support and stabilize the foundation.
Included soil excavation up to 3' deep.
Designed specifically for homes on flat land.

Concentric Push Piers:

Installed concentric push piers where required to provide additional foundation support.
Implemented in areas with limited vertical clearance.

Lift Procedure (Piering):

Installed a hydraulic lift system connected to strategically placed push piers.
Attempted to lift the foundation, with the ability to restore floor elevations.
Provided enhanced structural support to minimize future settlement.

SmartJack Support System:

Installed SmartJack 350 assemblies to reinforce and stabilize the home’s floor system.

Vertical Crack Repair with Injection & CarbonArmor:

Applied Epoxy for cracks up to 3’ in length.
Installed CarbonArmor patches and additional epoxy sealing to strengthen and reinforce cracks on the raised foundation wall.

Outcome:
Following the successful implementation of these foundation stabilization techniques, the homeowner experienced a significant improvement in their home's structural integrity. Doors and windows aligned more properly, minimizing functional issues, and the extensive crack repairs helped reinforce the foundation against future movement. The homeowner now has peace of mind knowing their property is supported by a long-term, professionally engineered solution.

Conclusion:
Foundation Repair of CA effectively addressed the foundation settlement issues in this Santa Clara home through expert diagnosis and high-quality solutions. By implementing push piers, SmartJack supports, and crack repair systems, the company provided a comprehensive and lasting solution tailored to the homeowner's needs. This project exemplifies the company’s commitment to delivering excellence in foundation repair and ensuring homeowner satisfaction.
